Printing the PCB

Use the CAM command on the File menu to produce laser printouts.

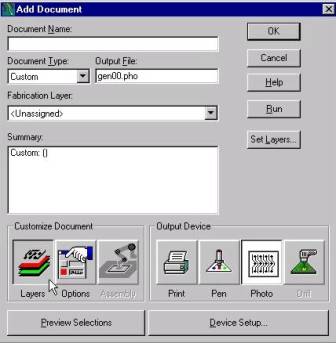

Select File/CAM, The Define CAM Documents dialog box appears.

Click Add icon

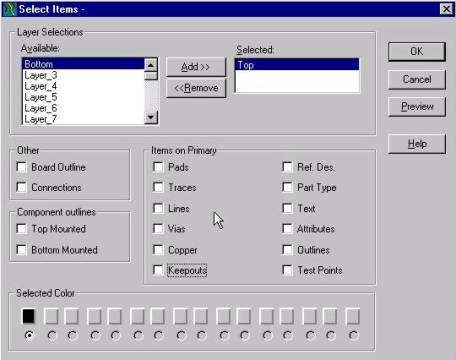

Click Layers icon to define which layers and items should appear on printouts.

Select the Layer in Layer Selections, Click Add icon.

Check item in Items on Primary. E.g. Pads, Lines

Click Preview icon to preview the output.

Click Board icon to zoom the output of PCB board. Then close.

Click Print icon in Output Device box, and Input the Document Name.

Click Run to print the output to Printer.
